Double end-tenoner for chevron flooring

It is used for chamfering and making the tongue and groove for chevron flooring

Product introduction

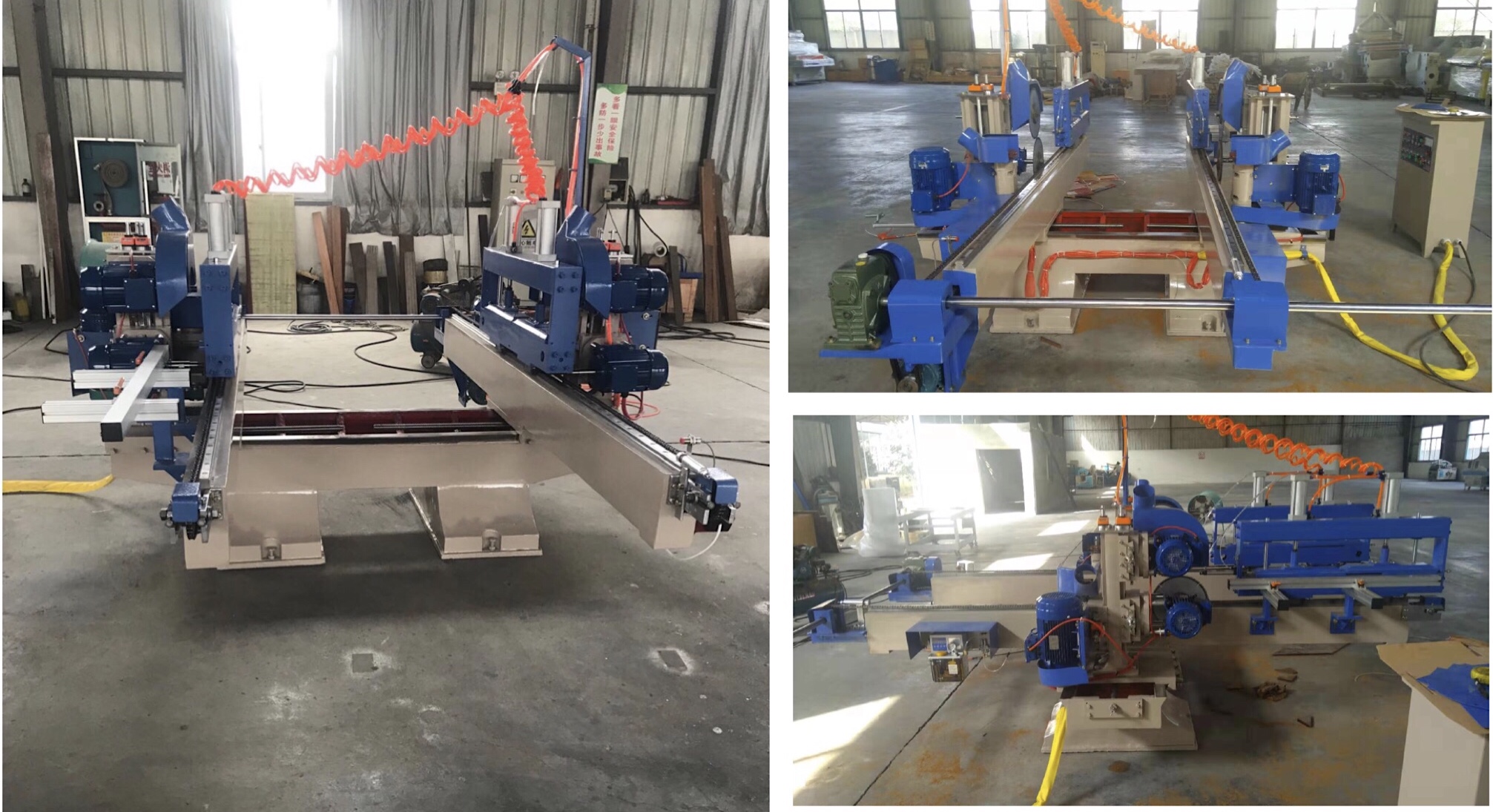

Double end-tenoner for chevron flooring

It is used for chamfering and making the tongue and groove for chevron flooring

Main Features

  1. High precision production processing.

  2. Feeding by frequency conversion control.

  3. Equipped with advanced linear guide, pneumatic cylinders

  4. All shafts are equipped with counters

  5. The chain and guides lubricated by a self-oil feeder

Technical specifications


Min processing length

300 mm

Max processing lengh

2600 mm

Motor for Saw blades

2.2 kw x 4 units

Saw speed

2840 rpm

Motor for Notching tools

3 kw x 2 units

Tilting angle saw blades

0-20°

Saw blade 1

OD: 300 mm, ID:25.4 mm, 4 pieces

Saw blade 2

OD: 250 mm, ID:25.4 mm, 1 piece

Vertical tool speed

8000 rpm

Feed motor

1.1 kw, Inverter control, Chinese brand

The brand of Inverter

Omron/Schneider

Feed speed

10 m/min adjustable

Dia of pipe for sawdust

140 mm/100mm

Suction inlet

140 mm/100mm
