Short Cycle Laminating Press
Product introduction

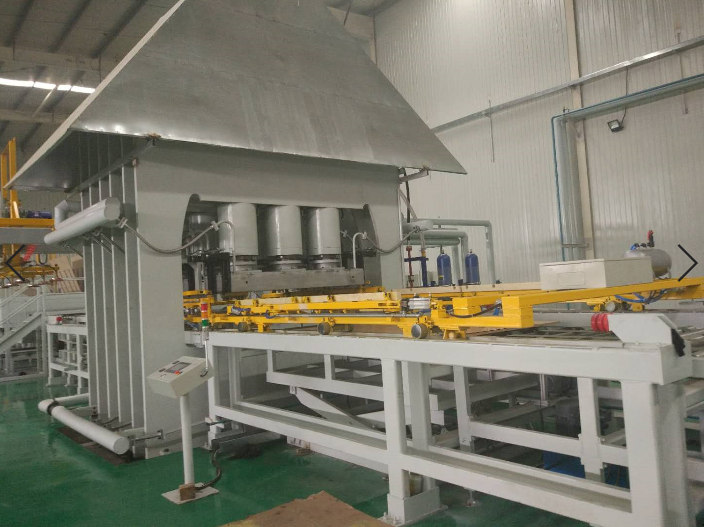

Short Cycle Laminating Press
Short Cycle Laminating Press for manufacturing of:
– Melamine faced chipboard
– Melamine faced MDF
Sizes: 4'x8', 4'x9', 6'x8', 6'x9', 7’x9’ and 6’x12’
Lamination: Both sides
Specific Pressure: From 30kg/cm2 to 80kg/cm2.
Mech. Cycle Time: From 12s to 22s
Loading mode: Transverse or Longitudinal feeding board orientation by either Tray Belt Loader or Clamping Loader.
Machine Control: Industrial Computer (PLC) with HMI
From simple manually operated machines through to fully automated machines, we have the ability to custom design a system to your requirements. We have several options available including a Raw Board Feeding Unit, Panel Cleaning Units, Automatic Paper Layup Unit, Automatic Registration System, Automatic Finished Board Trimming, Board Cooling Station, and Inspection & Stacking Stations.
Our Press Frames are precision ground with high accuracy ensuring the upper and lower heating platens are parallel, minimizing production reject.
Each heating platen has high precision automatic temperature control ensuring production stability.
