Cushion Pad
.Positioned between the Press Plate and Heating Platen of the Press, Cushion Pads compensate for minor tolerance differences improving Pressure Distribution and Heat Transfer.
Product introduction

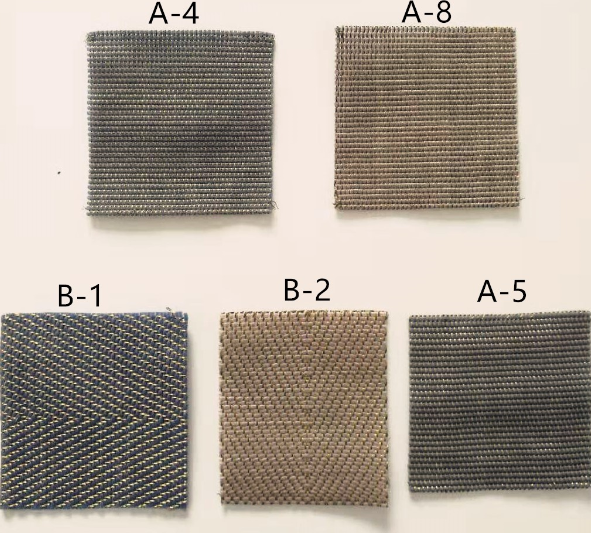

Cushion Pad for Press Machine
Positioned between the Press Plate and Heating Platen of the Press, Cushion Pads compensate for minor tolerance differences improving Pressure Distribution and Heat Transfer.
Material: Silica gel and Brass wire
Size: We provide a maximum width of 3800mm, to any length
Gram weight: 3400-3900 g/m²
Heat resistant: ≤230°C
Pressure resistance: ≤35Mpa
Features: The silicone gel provides the cushioning effect and the while the brass wire ensure even heat transfer and distribution.
